Synthesizing Controllers for Safety Games under Delayed Information

Mingshuai Chen

Author

Mingshuai Chen

Title

Synthesizing Controllers for Safety Games under Delayed Information

Description

The implementation declares either WINNING associated with a finite-memory winning strategy if the game is controllable, or LOSING otherwise with a delay under which the winning strategy vanishes.

DGame: solving delayed safety games

The tool DGame is dedicated to synthesizing controllers for safety games under delayed information. The key idea of the synthesis procedure is to compute a series of finite-memory winning strategies

while increasing delays from k = 0 to the finally interesting delay k = δ. The algorithm takes as input a delayed two-player safety game

and returns either WINNING associated with a winning strategy (α,

) for the controller if

is controllable, or LOSING otherwise with an integer m indicating that the winning strategy vanishes when lifting delay to m. Current version: v1.0Validated on platform: Mathematica 10, 64bit-Ubuntu-Desktop-14.10/17.04Latest modification: on Jan. 22, 2018, by Mingshuai Chen, SKLCS-ISCASCorresponding e-mail: chenms@ios.ac.cnList of contributors: Mingshuai Chen, Martin Fränzle, Yangjia Li, Peter N. Mosaad, and Naijun ZhanComments and bug-reports are higly appreciated.© 2018 DGame, State Key Lab. of Computer Science, ISCAS. All rights reserved.

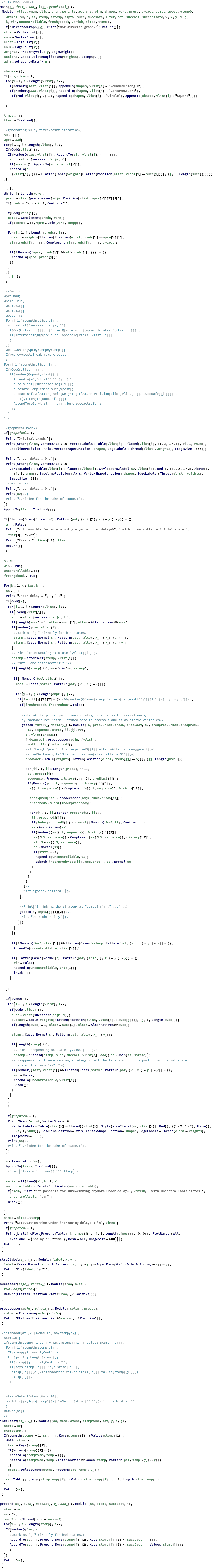

Source code

Demonstrative examples

Exmp. 1

(*gamegraph*)g1=Graph[{12,14,23,43,36,38,65,85,710,712,109,129,914,916,1411,1611,54,512,114,1112},EdgeWeight{a,b,u,u,a,b,u,u,b,a,u,u,b,a,u,u,b,a,a,b}];(*initialstate*)init1={1};(*unsafestates*)bad1={2,6,10,14};(*delay*)lag1=5;(*graphicalmode*)graphical1=1;

(*synthesizethestrategy*)main[g1,init1,bad1,lag1,graphical1]

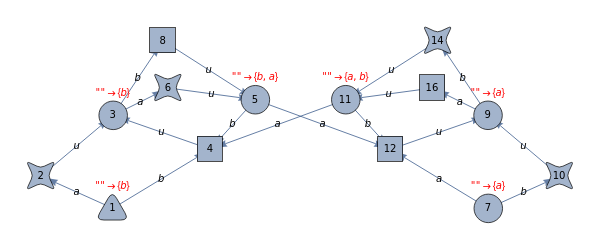

Original graph:

Under delay = 0 :

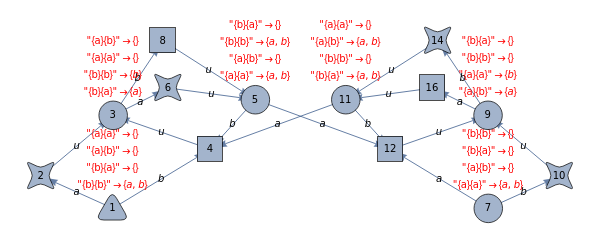

Under delay = 1 :

Under delay = 2 :

Under delay = 3 :

Under delay = 4 :

Under delay = 5 :

(*Computationtimeisgotunderthetextmode,i.e.withgraphical1=0,asrenderingthegraphsneedsmuchmoreextratime,whichthoughfallsbeyondthealgorithm.*)

Computation time under increasing delays : {0.004,0.004,0.004,0.008,0.008,0.012}

Exmp. 2

g2=Graph[{12,14,23,43,36,38,65,85,710,712,109,129,914,916,1411,1611,54,512,114,1112,83,811},EdgeWeight{a,b,u,u,a,b,u,u,b,a,u,u,b,a,u,u,b,a,a,b,u,u}];init2={1};bad2={2,6,10,14};lag2=4;graphical2=0;

main[g2,init2,bad2,lag2,graphical2]

Under delay = 0 :

{1,{}}{b},{3,{}}{b},{5,{}}{b,a},{7,{}}{a},{9,{}}{a},{11,{}}{a,b}

Under delay = 1 :

{{2,{}}{},{4,{}}{b},{6,{}}{},{8,{}}{b},{10,{}}{},{12,{}}{a},{14,{}}{},{16,{}}{a,b}}

Under delay = 2 :

{{1,{{a}}}{},{1,{{b}}}{b},{3,{{a}}}{},{3,{{b}}}{b},{5,{{b}}}{b},{5,{{a}}}{a},{7,{{b}}}{},{7,{{a}}}{a},{9,{{b}}}{},{9,{{a}}}{a,b},{11,{{a}}}{b},{11,{{b}}}{a}}

Under delay = 3 :

{{2,{{a}}}{},{2,{{b}}}{},{4,{{a}}}{},{4,{{b}}}{},{6,{{b}}}{},{6,{{a}}}{},{8,{{a}}}{},{8,{{b}}}{}}

Not possible for sure-winning anymore under delay=3 with uncontrollable states {4,8,1}.

Computation time under increasing delays : {0.,0.004,0.004,0.008}

Escp. 4 x 4

main[g3,init3,bad3,lag3,graphical3]

Under delay = 0 :

Under delay = 1 :

{{84,{}}{b,e,f,g,h,i},{28,{}}{c,d,i},{50,{}}{g,i},{162,{}}{},{22,{}}{c,d},{134,{}}{a,b},{78,{}}{b,i},{54,{}}{c,g,i},{166,{}}{},{26,{}}{c,d},{138,{}}{a,b},{82,{}}{b,i},{98,{}}{},{70,{}}{e,f,g,h,i},{42,{}}{g},{112,{}}{f},{56,{}}{g,i},{104,{}}{f},{76,{}}{b},{48,{}}{i},{210,{}}{},{182,{}}{f},{154,{}}{e},{224,{}}{},{196,{}}{f},{168,{}}{e},{216,{}}{},{188,{}}{},{160,{}}{},{14,{}}{c,d,i},{20,{}}{},{126,{}}{a,b,i},{140,{}}{a,b,i},{132,{}}{},{108,{}}{f,i},{80,{}}{b},{52,{}}{c,i},{220,{}}{},{192,{}}{},{164,{}}{a},{24,{}}{},{136,{}}{},{148,{}}{e,g,h,i},{92,{}}{},{106,{}}{},{36,{}}{},{8,{}}{c,d},{120,{}}{a,b,c,i},{64,{}}{d,g,h,i},{110,{}}{f,i},{46,{}}{c,i},{158,{}}{},{102,{}}{f,i},{18,{}}{},{130,{}}{},{74,{}}{},{204,{}}{e,f},{218,{}}{},{176,{}}{a,b,f,i},{190,{}}{},{222,{}}{},{194,{}}{},{214,{}}{},{186,{}}{},{90,{}}{h},{202,{}}{e,f,i},{62,{}}{d},{174,{}}{a,b,i},{146,{}}{c,d,g,h,i},{34,{}}{},{6,{}}{},{118,{}}{c},{96,{}}{i},{68,{}}{},{40,{}}{c},{100,{}}{f,i},{72,{}}{b},{44,{}}{c,i},{208,{}}{},{180,{}}{},{152,{}}{a},{212,{}}{},{184,{}}{},{156,{}}{a},{12,{}}{},{16,{}}{},{124,{}}{},{128,{}}{},{32,{}}{},{144,{}}{a,i},{88,{}}{h,i},{200,{}}{e,f},{4,{}}{},{116,{}}{},{60,{}}{},{172,{}}{a,b},{38,{}}{c,i},{150,{}}{a,i},{94,{}}{f,h,i},{10,{}}{},{122,{}}{},{66,{}}{},{206,{}}{e,f},{178,{}}{a,b},{86,{}}{h,i},{58,{}}{d},{30,{}}{c},{198,{}}{e,f,i},{170,{}}{a,b,i},{142,{}}{a,c,d,g,h,i},{2,{}}{},{114,{}}{c}}

Under delay = 2 :

Under delay = 3 :

{{84,{{b}}}{},{84,{{d}}}{},{84,{{e,f}}}{},{84,{{g,h}}}{},{84,{{i}}}{},{28,{{i}}}{},{28,{{c,d}}}{},{50,{{c}}}{},{50,{{g}}}{},{50,{{i}}}{},{162,{{a}}}{},{162,{{e}}}{},{162,{{c,d}}}{},{162,{{g,h}}}{},{162,{{i}}}{},{22,{{c,d}}}{},{22,{{i}}}{},{134,{{a,b}}}{},{134,{{c}}}{},{134,{{i}}}{},{78,{{i}}}{},{78,{{b}}}{},{78,{{d}}}{},{78,{{e,f}}}{},{78,{{g,h}}}{}}

Not possible for sure-winning anymore under delay=3 with uncontrollable states {162,166,210,216,188,20,132,220,24,136,92,106,36,158,18,130,74,218,190,222,194,214,186,6,208,180,212,184,12,16,124,32,4,116,60,10,122,66,84,50,28,22,134,78,27}.

Computation time under increasing delays : {0.084,0.132,0.216,0.248}

Escp. 4 x 5

main[g4,init4,bad4,lag4,graphical4]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {162,170,360,350,314,242,356,320,248,100,88,268,106,286,96,276,24,204,352,340,348,312,30,210,90,152,80,270,260,44,98,288,278,346,130,310,238,22,202,78,6,14,194,20,302,308,40,112,4,184,120,12,192,64,70,244,144,250,28,34,208,214,136,142,134,62,342,36,26,206,35}.

Computation time under increasing delays : {0.18,0.272,0.456,0.628}

Escp. 5 x 5

main[g5,init5,bad5,lag5,graphical5]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {110,340,202,358,118,348,210,302,308,588,450,578,440,596,550,458,584,538,446,492,400,546,408,120,108,338,126,356,116,438,346,392,24,254,30,260,580,568,586,540,576,530,494,484,594,502,582,536,490,100,192,54,298,22,252,160,390,482,500,98,6,14,20,244,474,480,50,4,142,12,242,150,212,82,312,218,90,320,166,172,74,80,72,28,34,26,402,266,274,264,396,258,256,36,174,44,182,184,304,310,46,164,45}.

Computation time under increasing delays : {0.456,0.68,1.164,1.708}

Escp. 5 x 6

main[g6,init6,bad6,lag6,graphical6]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {602,612,134,144,152,488,828,816,824,768,712,834,722,292,124,314,300,244,132,650,482,636,468,322,672,658,490,310,254,142,646,590,478,422,332,668,318,654,598,542,430,840,826,814,836,780,822,766,710,552,776,720,290,312,130,466,298,648,802,634,320,670,656,140,476,308,812,644,756,588,28,364,700,532,820,764,36,372,708,288,232,120,624,64,306,642,194,530,418,26,362,698,118,6,16,352,24,688,696,60,172,4,182,14,350,88,96,424,266,210,546,434,432,276,220,556,444,32,40,368,376,200,208,198,258,202,90,98,108,256,100,436,110,446,426,264,86,594,538,760,704,536,534,34,42,52,30,378,388,44,54,380,390,212,222,224,56,544,370,366,55}.

Computation time under increasing delays : {1.,1.42,2.404,4.304}

Escp. 6 x 6

main[g7,init7,bad7,lag7,graphical7]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {578,586,1008,994,722,1018,1004,936,732,946,158,372,168,780,802,380,176,788,584,1200,1188,1210,1142,1196,1128,992,1060,924,856,1220,1206,1138,1070,866,876,148,352,374,156,564,360,292,382,166,574,370,302,782,804,790,506,710,514,922,718,854,650,932,660,1212,1198,1222,1154,1208,1140,1072,1058,1150,1082,864,1068,874,1078,350,358,154,368,164,640,1048,28,436,844,1056,36,444,852,1066,144,280,76,502,26,434,230,638,842,6,16,24,424,72,4,208,14,422,218,304,170,316,178,326,102,110,510,518,306,314,312,188,336,596,734,744,120,528,324,236,244,100,108,98,712,982,778,986,918,714,644,1120,1052,916,914,32,40,30,652,450,460,926,724,656,858,666,868,676,654,664,448,440,438,34,42,442,238,246,52,256,248,112,258,122,268,132,508,532,542,520,530,124,134,516,540,44,54,64,452,462,56,464,260,66,474,270,272,68,472,234,67}.

Computation time under increasing delays : {2.064,2.904,5.116,10.304}

Escp. 7 x 7

main[g8,init8,bad8,lag8,graphical8]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {1568,1580,1942,308,966,590,992,320,978,884,602,894,1650,1274,1260,1678,1662,1286,1552,1270,1176,1564,1470,1188,1482,2336,1960,2320,1944,2348,2254,1972,2332,2238,1956,1862,1846,2250,2156,1874,2140,1858,2046,1764,2152,2058,1776,322,306,964,212,332,990,600,318,976,224,1648,1676,1660,1750,1374,1386,2322,2306,2334,2240,2318,2224,2346,2330,2236,2142,2048,2126,2032,2060,2138,2044,294,200,576,304,210,868,586,492,880,504,786,1162,796,1454,1172,1078,1466,1090,1372,2030,1748,1384,2042,1760,292,302,208,32,690,42,700,1358,2016,2028,196,478,102,782,30,688,406,1064,6,18,28,676,98,4,380,16,674,392,626,330,1284,922,988,250,896,908,612,1646,1312,1296,1970,1592,1954,1674,1658,2304,1554,1928,2316,2222,1578,1940,1848,1474,1754,2128,2034,1472,1484,1378,1752,1966,2344,2328,1872,2234,358,342,640,624,344,1016,1000,1298,920,1216,1282,1002,638,248,906,610,328,1268,986,262,530,234,1634,1926,1644,1458,2210,1930,1556,1836,2116,1834,1832,1550,1364,2022,1740,1738,1082,1362,370,354,652,636,356,1028,1012,1310,1294,1014,1686,1670,1968,1952,1672,340,998,1938,1656,1576,1200,1590,1562,2292,2132,1742,1850,1180,1460,1756,2130,2302,2208,2114,2038,1366,2036,2020,2314,2220,2340,1964,2342,2246,1870,2248,2326,2232,962,316,974,222,598,1632,1258,1164,1538,1256,506,226,604,240,898,614,252,910,510,520,228,238,236,264,532,132,142,790,800,508,518,516,544,276,934,1190,1202,154,812,412,422,130,140,128,1542,1448,1166,1070,1822,1728,1446,1444,36,46,34,1080,1178,1084,1462,706,718,1096,1368,1380,1486,1392,1376,1108,1766,1498,1404,1390,1094,704,694,692,38,48,696,414,424,60,436,416,426,134,144,438,156,450,168,788,804,816,1192,828,1204,802,814,146,158,522,534,170,546,536,548,560,1194,1206,1218,798,840,826,182,558,40,50,62,74,708,720,52,64,710,722,428,440,76,734,452,442,160,454,172,466,184,66,78,90,1086,1098,1110,1100,818,1112,830,174,832,186,844,1124,842,724,736,80,738,456,470,94,92,750,468,748,732,88,746,464,1122,410,93}.

Computation time under increasing delays : {7.712,10.672,19.044,52.468}

Escp. 7 x 8

main[g9,init9,bad9,lag9,graphical9]

Under delay = 0 :

(*hidden for the sake of space*)

Under delay = 1 :

(*hidden for the sake of space*)

Under delay = 2 :

(*hidden for the sake of space*)

Under delay = 3 :

(*hidden for the sake of space*)

Not possible for sure-winning anymore under delay=3 with uncontrollable states {1570,1584,2466,2448,2016,2480,2462,2354,2030,2368,354,368,380,1244,2108,3008,2990,2972,3004,2896,2986,2878,2446,2892,2784,2676,2690,772,340,802,784,676,352,1666,1234,1216,814,1696,1678,1246,798,690,366,1554,1230,1122,1566,1458,1134,2560,2128,2542,2110,2592,2574,2142,2556,2124,1998,1472,2336,2012,1904,2350,2242,1918,3024,3006,2988,3020,2912,3002,2894,2908,2800,2782,2674,2256,2796,2688,770,800,350,782,242,1664,812,1694,1676,364,796,256,688,2558,2540,2590,2572,2554,1794,2766,2658,2226,1808,2780,2672,660,336,228,672,348,564,240,1104,578,1442,1118,1010,1454,1346,1022,1886,1360,2224,1900,1792,2656,2238,1806,2670,238,36,900,48,912,1776,2640,2654,548,224,116,466,1330,1006,34,898,6,20,884,32,112,436,4,450,18,882,1662,412,394,1276,1258,828,2140,1616,1598,2122,1692,810,286,1136,1150,718,702,734,378,1674,1582,1166,1242,2526,2538,2000,2430,2106,2154,3018,2476,2588,2136,3000,2570,1272,1164,2028,1612,1504,2044,1596,1580,2552,2444,1906,1920,1798,2770,2662,2230,2228,2970,2984,2876,2340,2232,2338,1908,2768,2660,1228,2092,1660,842,426,408,1290,824,410,392,1274,1256,826,1706,1688,2138,1614,2478,2460,2120,1690,376,1240,808,716,608,284,268,300,732,748,1148,700,2104,1672,1564,1350,2322,2214,1890,1782,1780,2956,2524,2968,2536,2860,2428,2754,2752,1462,2434,2326,2002,1892,2864,2756,2324,2862,2432,2004,2320,2646,2644,1784,2648,2216,2218,2212,856,838,424,406,1288,1270,840,1720,2152,1702,2134,1704,2584,3016,2586,2566,2998,2568,730,390,422,1286,1594,1254,822,2150,3014,2458,2118,1686,2010,2982,2550,2874,2042,2906,2474,2026,2890,2366,2442,2580,2472,3012,2996,2364,2904,2888,768,780,1644,1212,2508,794,686,362,1658,1550,1226,254,2522,2414,2090,1984,1446,2418,2310,1986,1996,1876,1888,2848,2740,2308,2306,1552,1444,1982,148,160,1012,594,486,1026,1024,500,1364,1040,40,52,904,916,472,484,470,582,474,150,162,176,580,272,706,720,598,612,1476,1138,1152,164,1028,596,626,1182,2032,2046,1490,178,1042,610,258,260,274,288,692,694,276,1140,290,1154,262,1126,704,304,1168,584,270,302,318,1014,592,192,1056,624,640,316,1180,1474,1488,146,586,1124,152,1016,1338,1768,1336,1334,2632,2200,2198,2202,1878,1558,1450,1988,1880,1448,1874,42,54,68,38,918,932,56,70,920,934,488,502,84,948,516,490,504,166,180,518,194,532,208,58,72,86,100,1348,1368,2018,1910,1382,2246,1922,1352,1366,1396,2260,1936,1812,1380,1354,1030,1044,1058,168,182,1032,1046,600,614,196,1060,628,616,630,644,210,1074,642,1460,1480,1494,1508,1924,1478,1492,1938,1506,1072,1894,1896,1464,922,936,950,60,74,924,938,492,506,88,952,520,508,184,522,198,536,212,76,90,104,102,966,534,964,1786,1800,1814,1788,1802,1356,1370,1816,1384,1372,1048,1386,1062,200,1064,214,1078,1400,1076,940,954,92,956,524,540,108,106,970,538,968,1830,1398,1796,1828,2244,906,44,908,476,478,154,46,902,107}.

Computation time under increasing delays : {13.44,18.248,32.688,108.596}
